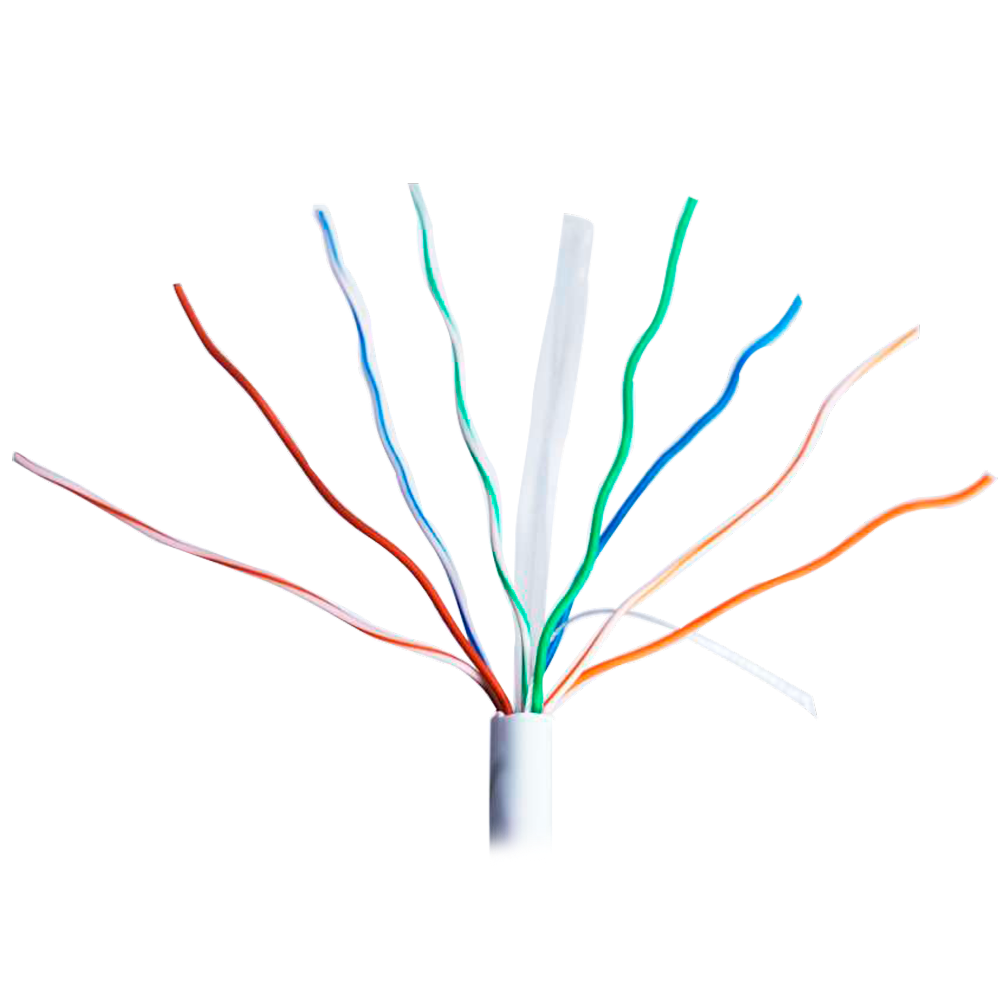

Cat6a(UTP),305m,Overseas
Login/Register
43 in stock
Pick up from the Store selected at Check Out.
Items should be paid for and collected as soon as transaction is done, subject to cancellation if not collected within 5 days.
Free
Delivery Service
Within 5 working days
Free
To be negotiated with your habitual Sales Representative for orders above Rs. 25,000
Warranty Period and services offered are as per Manufacturer's Terms
| Cable | ||||||||
| Product model | UV-UTP6A-300-BC23AWG-DCA-R-W | |||||||
| Product specification | Cat6A. U/UTP. 4×2×0.55mm | |||||||
| Test Standard | ISO/IEC11801 ED.2 ANSI/TIA-568-C.2 |
|||||||
| Packing length | 305±1 m | |||||||
| Rip-cord | Yes | |||||||
| Crossing backbone | Yes | |||||||
| Ambient temperature | -20℃～75℃ | |||||||
| Conductor | ||||||||
| Material | OFC | |||||||
| AWG | 23 | |||||||
| Nom.O.D.(mm) | 0.55±0.005 mm | |||||||
| DC resistance | ≤95Ω/km | |||||||
| Insulation | ||||||||
| Material | HDPE | |||||||
| Thickness | 0.21+0.03mm | |||||||
| Diameter | 0.98±0.05 mm | |||||||
| Color | Blue/White- Blue,Green/White-Green,Orange/White-Orange,Brown/White-Brown | |||||||
| Pitch | ||||||||
| Offset pitch | ≤25mm | |||||||
| Cable pitch | ≤120mm | |||||||
| Sheath | ||||||||
| Material | LSZH (EN13501-6 DCA) | |||||||
| Fire Resistance | CPR Dca | |||||||
| External O.D. | 6.0±0.3 mm | |||||||
| Thickness | 0.55±0.15 mm | |||||||
| Color | White | |||||||
| Tensile strength | >10 Mpa | |||||||
| Surface Printing | ||||||||
| Letter height | 3.0±0.3 mm | |||||||
| Print error / Space | 1±0.005 m | |||||||
| Color | Black | |||||||
| Packing | ||||||||
| Packing | Reel | |||||||
| Once packing dimension | 380mm*200mm*200mm | |||||||
Overview
| Brand |
UNV |
|---|
