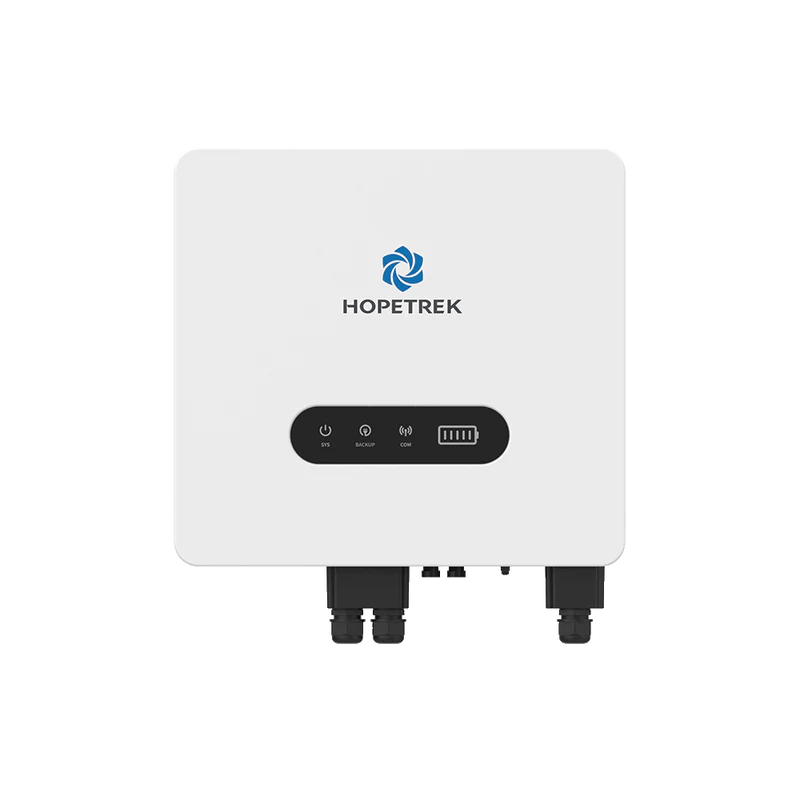

Hopetrek 6KW Low Voltage Single-phase Energy Inverter

SKU: SUN-SL-HP6K-A1

SUN-SL-HP6K-A1 is a versatile hybrid inverter that integrates the functions of a bidirectional inverter, solar charger, and battery
charger, offering portable uninterruptible power supply support. It supports smart system control, various working modes, and
autonomous energy management.

  • Supports low-voltage battery systems for enhanced safety.
  • Supports 150% PV oversizing.
  • Supports 110% AC overloading output.
  • Supports 150% backup power output for 10 seconds.
  • Supports 170% AC input.
  • Battery charge/discharge current up to 120A.
  • 10ms EPS switch time
  • Supports smart load management.
  • Supports parallel operation with up to 5 inverters (to be launched in 2025).
  • Compatible with grid voltage or diesel generator power supply (to be launched in 2025).
  • Supports overload protection, overtemperature protection, and short-circuit protection.
  • Allows to disable feed-in, meeting regulation requirements of different regions.
  • Supports remote monitoring on an app via Wi-Fi connection.
  • IP66 protection, allows for outdoor use

Login/Register

5 in stock

Add to compare
Add to wishlist
16 People watching this product now!
  • Pick up from the Store selected at Check Out.

Items should be paid for and collected as soon as transaction is done, subject to cancellation if not collected within 5 days.

Free

  • Delivery Service

Within 5 working days

Free

To be negotiated with your habitual Sales Representative for orders above Rs. 25,000

  • Warranty Period and services offered are as per Manufacturer's Terms

More details

Description

SUN-SL-HP6K-A1

PV String Input Data               Description
Max. PV Input Power9000W
Max. PV Input Voltage600V
Rated PV Input Voltage360V
 Start-up Voltage120V
MPPT Voltage Range100~550V
Full Load MPPT Voltage Range280~500V
Max. PV Input Current16/16A
Max. DC Short Circuit Current20/20A
No.of MPPT Trackers 2
No.of Strings Per MPPT1/1

Battery Input Data                                                                          Description

Battery Type Li-ion
Battery Voltage Range40~60V
Max. Charging Current120A
Max. Discharging Current120A
No.of Battery Input 1
AC input/output data(Ongrid)                                                         Description
Rated AC Output Power6000W
Max. AC Output Apparent Power6600VA
Grid Type Single Phase
Rated AC Voltage 220V/230V/240V, L/N/PE
Rated AC Frequency50/60Hz
Rated AC Output Current27.3/26.1/25A
Max. AC Output Current30/28.7/27.5A
Power Factor0.8 leading to 0.8 lagging
THDi (@Rated Power)＜3%
Max. AC Power From Grid10000VA
Max. Current From Grid45.5/43.5/41.7A
AC Output Data（Back-up）                                                           Description
Rated Output Power6000W
Max. Output Apparent Power6600VA
Peak Output Apparent Power7200W@60s, 9000W@10s
Rated Output Voltage230V, L/N/PE
Rated Output Frequency50/60Hz
Rated Output Current26.1A
Max Output Current 28.7A
Switch Time10ms
THDv (@Linear Load)＜3%
Protection                                                                                                  Description
Anti-islanding ProtectionIntegrated
PV Input Reverse Polarity ProtectionIntegrated
Insulation Resistor DetectionIntegrated
Ground Fault MonitoringIntegrated
Residual Current Monitoring (GFCI) Integrated
AC Overcurrent ProtectionIntegrated
AC Short Circuit ProtectionIntegrated
AC Overvoltage ProtectionIntegrated
DC Switch (Solar)Integrated
AFCI Optional
Remote ShutdownIntegrated
Thermal ProtectionIntegrated
DC Surge ProtectionDC Type II / AC Type III
AC Surge ProtectionDC Type II / AC Type III
Working Efficiency                                                                               Description
Max. Efficiency97.23%
Euro Efficiency96.59%
MPPT Efficiency>99%
General Data                                                                                        Description
User InterfaceLED & APP
Communication With BMSCAN
Communication With PortalWiFi+LAN/4G(Optional)
Dimension(W×D×H mm)462*208*511mm
Weight 23.8kg
Self-consumption At Night ＜10W
 Certifications and Standards                                                         Description
Grid Connection StandardNTS TypeA, UNE 217002, UNE_217001, EN 50549-1&-10, G99, G98, G100, CEI 0-21
Safety StandardIEC62109-1&2
EMC StandardEN61000-6-1, EN61000-6-2, EN61000-6-3, EN61000-6-4, EN301 489-1/-17
Operating Conditions                                                                    Description
Operating Temperature Range -25~60℃
Storage Temperature Range -25~85℃
Operation Relative Humidity≤95%, RH
Max. Operation Altitude3000m(>2000m power derating)
Ingress ProtectionIP66
Cooling ConceptNatural Cooling
Installation Style Wall-mounted
Noise Emission＜30dB
Warranty 10 Years
