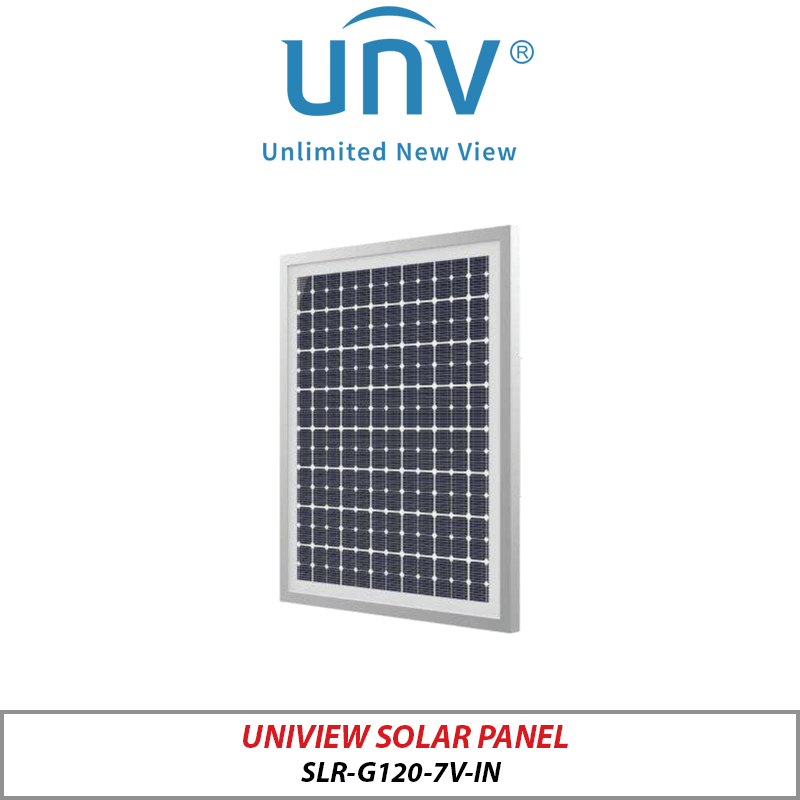

UNV 60W Solar Panel

SKU: SLR-G120-7V-IN
  • Back surface field and electrodes are made of high-quality metal pastes, ensuring good conductivity.
  • High-efficiency monocrystalline silicon cell with high photoelectronic conversion efficiency.
  • High-transmittance tempered glass and UV-resistant EVA backsheet materials further improve the conversion efficiency of
    photovoltaic modules.
  • Anodized aluminum alloy frame improves the corrosion resistance and ensures that the components can withstand harsh outdoor
    environments.

Login/Register

2 in stock

14 People watching this product now!
  • Pick up from the Store selected at Check Out.

Items should be paid for and collected as soon as transaction is done, subject to cancellation if not collected within 5 days.

Free

  • Delivery Service

Within 5 working days

Free

To be negotiated with your habitual Sales Representative for orders above Rs. 25,000

  • Warranty Period and services offered are as per Manufacturer's Terms

Description

Model SLR-G120-7V-IN

Specification

Peak power 60W
Operating voltage4.5V
Operating current13.33A
Open circuit voltage 5.4V
Short circuit current14.66A
Cell conversion efficiency≥22%
Output interface type4-pin quick connector (for battery switch)
Operating temperature-20°C to 60°C
Dimensions 765*395*25mm
Weight



6.5kg

Specification

Overview

Brand

UNV
