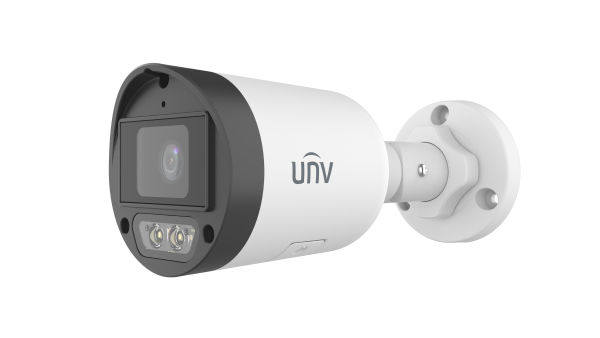

UNV 2MP Fixed Dual-light Bullet Network Camera

SKU: IPC2122LB-AF28K-DL2

• High quality image with 1080P, 1/3.0″ CMOS sensor
• 1080P (1920 × 1080)@25/30 fps; 720P (1280 × 720)@25/30 fps
• Smart dual-light ensures high quality image
• Ultra 265, H.265, H.264
• Supports ultra motion detection
• Built-in mic
• Up to 30 m (98.4 ft) IR and warm light distance
• MicroSD, up to 512 GB
• IP67 protection
• 3-axis
• Supports PoE power supply

Login/Register

20 in stock

Add to compare
Add to wishlist
10 People watching this product now!
  • Pick up from the Store selected at Check Out.

Items should be paid for and collected as soon as transaction is done, subject to cancellation if not collected within 5 days.

Free

  • Delivery Service

Within 5 working days

Free

To be negotiated with your habitual Sales Representative for orders above Rs. 25,000

  • Warranty Period and services offered are as per Manufacturer's Terms

More details

Description

Camera
Max Resolution2 MP
Sensor1/3.0″ CMOS
Min. IlluminationColor: 0.005 Lux (F1.6, AGC ON), 0 Lux with light
Day/NightIR-cut filter with auto switch (ICR)
ShutterAuto/Manual, 1 ~ 1/100000s
Adjustment AnglePan: 0° to 360°, Tilt: 0° to 90°, Rotate: 0° to 360°
S/N>52 dB
WDRDWDR
Lens
Focal Length2.8 mm4.0 mm
Iris TypeFixed
IrisF1.6
Field of View (H)92.6°74.9°
Field of View (V)51.1°39.6°
Field of View (D)105.8°84.7°
Lens TypeFixed
DORI
DORI Distance (Lens)2.8 mm4 mm
DORI Distance (Detect)46.7 m (153.2 ft.)66.7 m (218.8 ft.)
DORI Distance (Observe)18.7 m (61.4 ft.)26.7 m (87.6 ft.)
DORI Distance (Recognize)9.3 m (30.5 ft.)13.3 m (43.6 ft.)
DORI Distance (Identify)4.7 m (15.4 ft.)6.7 m (22.0 ft.)
Illuminator
Supplemental LightDual light
Illumination Distance (IR)30 m (98.4 ft)
Illumination Distance (Warm Light)30 m (98.4 ft)
Wavelength850 nm
Video
Video CompressionUltra 265, H.265, H.264
H.264 Code ProfileBaseline profile, Main profile, High profile
Frame RateMain Stream: 1080P (1920 × 1080), max. 30 fps; 720P (1280 × 720), max. 30 fps
Sub Stream: 640 × 360, max. 30 fps; 2CIF (704 × 288), max. 30 fps; CIF (352 × 288), max. 30 fps
Video Bit Rate128 Kbps to 6144 Kbps
U-codeSupport
OSDUp to 4 OSDs
Privacy MaskUp to 4 areas
ROISupport
Video StreamDual streams
White BalanceAuto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2, Area white balance
Digital Noise Reduction2D/3D DNR
Smart IRSupport
FlipNormal, Flip vertical, Flip horizontal, 180°
DewarpingN/A
HLCSupport
BLCSupport
DefogDigital defog
Image StabilizationN/A
Events
Basic DetectionUltra motion detection, Motion detection, Audio detection, Tampering alarm
General FunctionWatermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication
Audio
Audio CompressionG.711U, G.711A
Audio Bitrate64 Kbps
Two-way AudioN/A
SuppressionSupport
Sampling Rate8 kHz
Storage
Edge StorageMicroSD, up to 512 GB
Network StorageANR, NAS (NFS)
Network
ProtocolsIPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, UPnP, HTTP, HTTPS, QoS, SSL/TLS, SNMP
Compatible IntegrationONVIF (Profile S, Profile T) , API, SDK
User/HostUp to 32 users. 3 user levels: administrator, common user and operator
SecurityPassword Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF
ClientEZStation, APP
Web BrowserPlug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+, Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+
Interface
Audio I/ON/A
Alarm I/ON/A
Serial PortN/A
Built-in MicSupport
Built-in SpeakerN/A
WIFIN/A
Network1 × RJ45 10 M/100 M Base-TX Ethernet
Video OutputN/A
Certification
EMCCE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 50130-4)
FCC (FCC 47 CFR part15 B)
SafetyCE LVD (EN 62368 1)
UL/CUL (UL 62368 1, CAN/CSA C22.2 No. 62368 1)
EnvironmentCE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU)
ProtectionIP67 (IEC 60529)
General
PowerDC 12 V±25%, PoE (IEEE 802.3af)
Power ConsumptionMax. 3.9 W
Power InterfaceØ5.5 mm coaxial power plug
Dimensions162.1 mm × 66.5 mm × 66.6 mm (6.3″ × 2.6″ × 2.6″) (L × W × H)
Weight0.21 kg (0.46 lb)
MaterialGraphene + Plastic
Storage Environment-30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing)
Working Environment-30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing)
Surge Protection4 KV
Reset ButtonSupport
Web Client Language4 Languages: English, Russian, Spanish, Vietnamese
