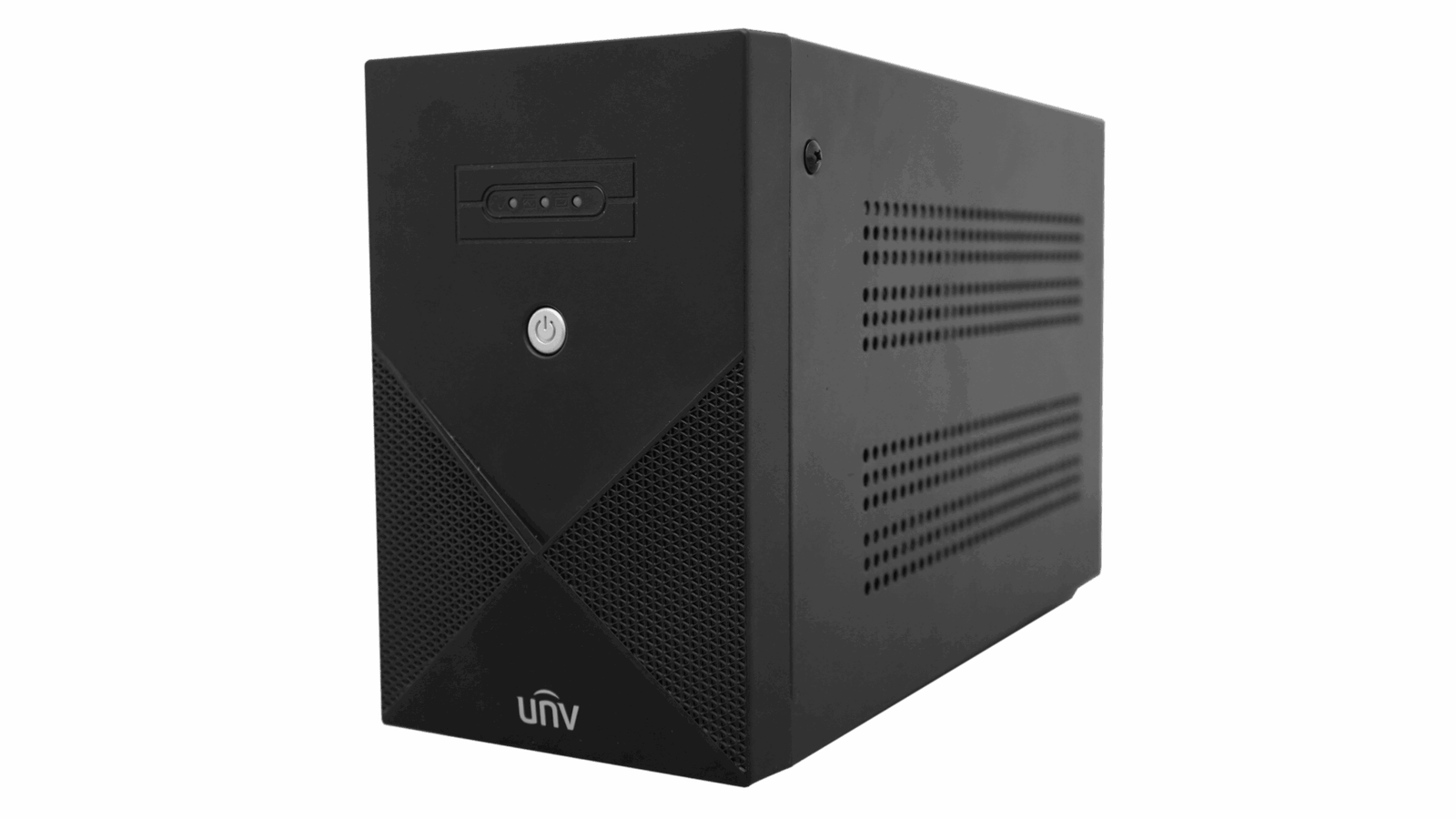

1200VA/720W Uninterrupted Power Supply European Standard Socket Version
Login/Register
Pick up from the Store selected at Check Out.
Items should be paid for and collected as soon as transaction is done, subject to cancellation if not collected within 5 days.
Free
Delivery Service
Within 5 working days
Free
To be negotiated with your habitual Sales Representative for orders above Rs. 25,000
Warranty Period and services offered are as per Manufacturer's Terms
| UPS1200-SEA-UK | ||||||||
| Capacity | ||||||||
| Capacity | 1200 VA | |||||||
| Input | ||||||||
| Input Voltage | 169 VAC to 278 VAC | |||||||
| Input Current | 7.5 A | |||||||
| Rated Input Frequency | 50 Hz / 60 Hz (Adaptive) | |||||||
| Output | ||||||||
| Output Voltage | 198 VAC to 242 VAC | |||||||
| Output Current (Mains Supply) | 7.5 A Max | |||||||
| Output Current (Battery Powered) | 36 A Max | |||||||
| Output Power (Mains Supply) | 700 W Max | |||||||
| Output Power (Battery Powered) | 530 W Max | |||||||
| Output Frequency | 50 Hz / 60 Hz (Adaptive) | |||||||
| Power Factor | 0.6 | |||||||
| Switch Time | ＜10 ms | |||||||
| Output Wave | Pure Sine Wave (Main Electricity Mode); Square Wave (Battery Mode) | |||||||
| Battery | ||||||||
| Built-in Battery | Yes | |||||||
| Battery Type | Lead – Acid Battery | |||||||
| Qty.of Battery | 12 V, 7 Ah × 2 | |||||||
| Charging Current | 0.5 – 4 A | |||||||
| Limited Charge Voltage (Boost Charge) | 29 V | |||||||
| Limited Charge Voltage (Float Charge) | 27.8 V | |||||||
| Charging Time | 4-6 hours recover to 90% capacity | |||||||
| Status Indicator Light | ||||||||
| Battery Powered | Middle indicator is flashing red (every 6 seconds) | |||||||
| Mains Supply | Left indicator is green | |||||||
| Charging while Shutdown | Right indicator is steady yellow | |||||||
| Charging while On | Right indicator is yellow with breathing effect | |||||||
| Alarm Indicator | ||||||||
| Low Power | Alarms one sound every 1 second | |||||||
| Overload | Alarms one sound every 0.5 seconds | |||||||
| Fault | Continuous Alarm | |||||||
| Protection | ||||||||
| Short Circuit | Support | |||||||
| Surge | Support | |||||||
| Overload | Support | |||||||
| Heavy Discharge | Support | |||||||
| Overcharge | Support | |||||||
| Plugs and Sockets | ||||||||
| Input Plug | British Standard | |||||||
| Input Cable Length | 1 m (39.37 ft) | |||||||
| Socket | Universal Socket | |||||||
| Number of Output Sockets | 4 | |||||||
| Structure | ||||||||
| Product Dimensions | 312 mm * 122 mm * 195 mm (12.3” * 4.4” * 7.7”) | |||||||
| Packaging Dimensions | 403 mm * 223 mm * 295 mm (15.9” * 8.8” * 11.6”) | |||||||
| Casing Material | Iron and Plastic | |||||||
| Appearance Color | Black | |||||||
| Net Weight | 8.64 Kg (19.05 lbs) | |||||||
| Weight (Battery Only) | 2 Kg (4.4 lbs) * 2 | |||||||
| Environment | ||||||||
| Operating Temperature | 0 ℃ to 40 ℃ (32 ℉ to 104 ℉) | |||||||
| Operating Humidity | 0 to 90% (non-condensing) | |||||||
| Storage Temperature | 0 ℃ to 40 ℃ (32 ℉ to 104 ℉) | |||||||
| Storage Humidity | 0 to 90% (non-condensing) | |||||||
| Certifications | ||||||||
| Certifications | CE | |||||||
